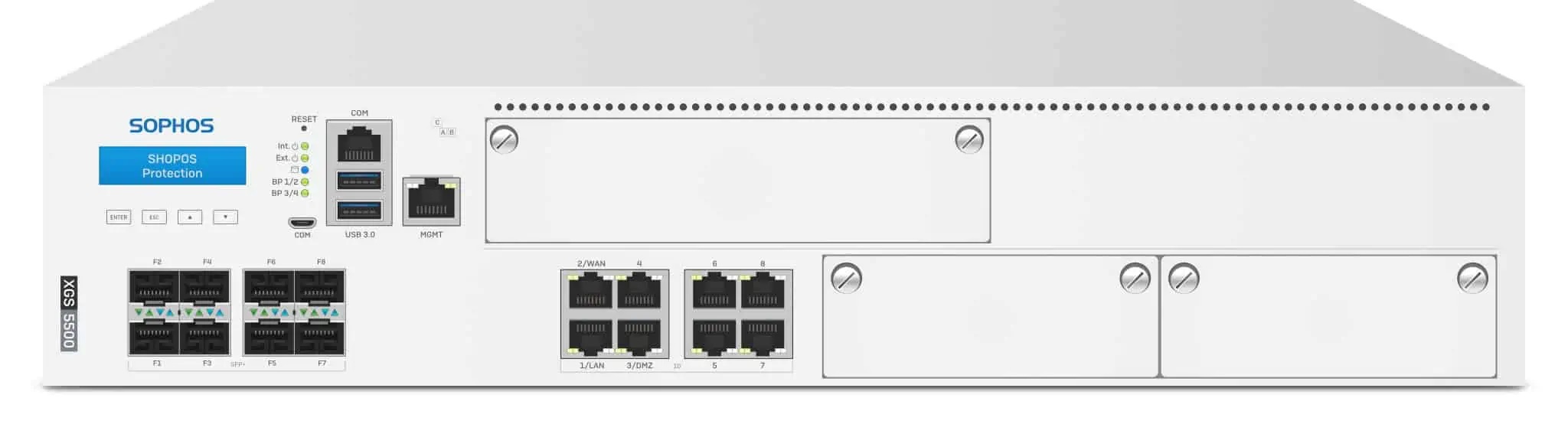

Sophos XGS 5500
All XGS Series firewall appliances are built on a dual-processor architecture,
combining a high-performance, multi-core CPU with a dedicated Xstream Flow
Processor for targeted acceleration at the hardware level. This gives you the
f
lexibility and adaptability of an x86-based firewall plus a significant performance
boost over legacy firewall designs
Performance | XGS 5500
Firewall throughput: 100,000 Mbps
Firewall IMIX: 52,000 Mbps
Firewall Latency (64 byte UDP): 5 µs
IPS throughput: 40,000 Mbps
Threat Protection throughput: 14,000 Mbps
NGFW: 38,000 Mbps
Concurrent connections: 32,400,000
New connections/sec: 468,000
IPsec VPN throughput: 92,500 Mbps
SSL VPN concurrent tunnels: 15,000
Xstream SSL/TLS Inspection: 13,500 Mbps
Xstream SSL/TLS Concurrent connections: 512,000
Physical interfaces
Storage: 2 x min. 480 GB SATA-III SSD
HW RAID built into CPU
Ethernet interfaces (fixed): 8 x GbE copper
8 x SFP+ 10 GbE fiber*
Bypass port pairs: 2
Management ports: 1 x RJ45 MGMT
1 x COM RJ45
1 x Micro-USB (cable incl.)
Other I/O ports: 2 x USB 3.0 (front)
Number of Flexi Port slots: 2 + 1 for high-density module
Flexi Port modules (optional): 8 port GbE copper
8 port GbE SFP fiber
4 port 10 GbE SFP+ fiber
4 port GbE copper bypass (2 pairs)
2 port 40 GbE QSFP+ fiber
8 port 10 GbE SFP+ fiber
2 port GbE Fiber (LC) bypass
+ 4 port GbE SFP Fiber
2 port 10 GbE Fiber (LC) bypass
+ 4 port 10 GbE SFP+ Fiber
High-density module (NIC): 12 port
GE copper + 4 port 2.5 GE copper
Max. total port density (incl. use of modules): 48
Optional add-on connectivity: SFP DSL module (VDSL2) SFP/SFP+ Transceivers
Display: Multi-function LCD module
Physical specifications
Mounting: 2U sliding rails (included)
Dimensions
Width x Depth x Height: 438 x 88 x 645 mm
Weight: 17.8 kg/39.24 lbs (unpacked)
27 kg/59.53 lbs (packed)
Environment
Power supply: 2 x hot-swap internal auto-ranging 100-240VAC, 50-60 Hz PSU
Power consumption: 168.0W/573.81 BTU/h (idle)
478.01W/1117.43 BTU/h (max.)
Operating temperature: 0?C to 40?C (operating)
-20?C to +70?C (storage)
Humidity: 10% to 90%, non-condensing
Product Certifications
Certifications: CB, CE, UKCA, UL, FCC, ISED, VCCI, BSMI,
RCM, NOM, Anatel, KC, CCC, SDPPI
Planned: TEC
