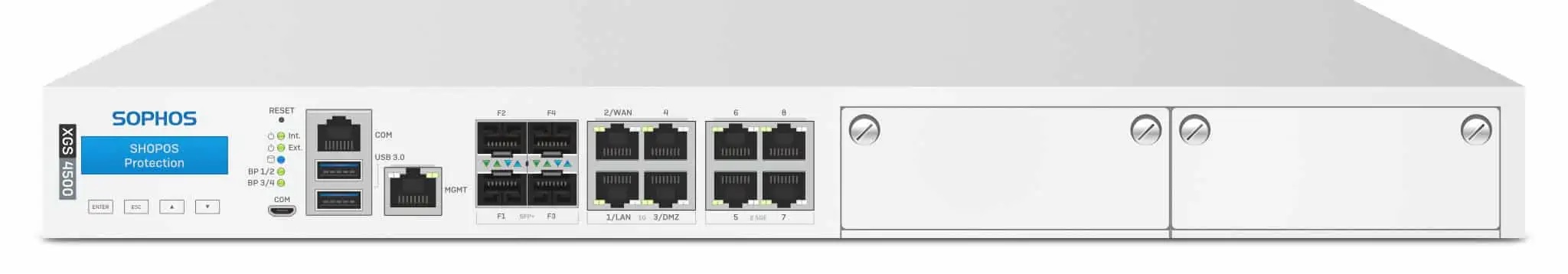

Sophos XGS 4500
All XGS Series firewall appliances are built on a dual-processor architecture,
combining a high-performance, multi-core CPU with a dedicated Xstream Flow
Processor for targeted acceleration at the hardware level. This gives you the
f
lexibility and adaptability of an x86-based firewall plus a significant performance
boost over legacy firewall designs
Performance | XGS 4500
Firewall throughput: 80,000 Mbps
Firewall IMIX: 37,000 Mbps
Firewall Latency (64 byte UDP): 4 ?s
IPS throughput: 36,500 Mbps
Threat Protection throughput: 8,650 Mbps
NGFW: 30,000 Mbps
Concurrent connections: 17,200,000
New connections/sec: 450,000
IPsec VPN throughput: 75,550 Mbps
SSL VPN concurrent tunnels: 10,000
Xstream SSL/TLS Inspection: 10,600 Mbps
Xstream SSL/TLS Concurrent connections: 276,480
Physical interfaces
Storage: 2 x min. 240 GB SATA-III SSD (SW RAID-1)
Ethernet interfaces (fixed):4 x GbE copper
4 x 2.5 GbE copper
4 x SFP+ 10 GbE fiber*
Bypass port pairs: 2
Management ports: 1 x RJ45 MGMT
1 x COM RJ45
1 x Micro-USB (cable incl.)
Other I/O ports: 2 x USB 3.0 (front)
Number of Flexi Port slots: 2
Flexi Port modules (optional):8 port GbE copper
8 port GbE SFP fiber
4 port 10 GbE SFP+ fiber
4 port GbE copper bypass (2 pairs)
4 port GbE copper PoE +
4 port GbE copper
4 port 2.5 GbE copper PoE
2 port GbE Fiber (LC) bypass
+ 4 port GbE SFP Fiber
Max. total port density (incl. use of modules): 28
Max. Power-over-Ethernet (using Flexi Port module): 2 modules: 4 ports, 60W max. each
Optional add-on connectivity: SFP DSL module (VDSL2) SFP/SFP+ Transceivers
Display: Multi-function LCD module
Physical specifications
Mounting: 1U rackmount (sliding rails incl.)
Dimensions
Width x Depth x Height: 438 x 44 x 510 mm
Weight: XGS 4300: 8.7 kg/19.18 lbs (unpacked)
XGS 4500: 9.7 kg/21.38 lbs (unpacked
XGS 4300: 14.9 kg/32.85 lbs (packed)
XGS 4500: 15.9 kg/35.05 lbs (packed)
Environment
Power supply:XGS 4300: Internal Hot Swappable auto-ranging
AC-DC 100-240VAC, 3.7-7.4A@50-60 Hz
Internal Redundant PSU Option
Power consumption: 4300:151 W/515.74 BTU/hr (idle)
268.35 W/916.56 BTU/hr (max.)
PoE addition enabled:152 W/519 BTU/hr
Operating temperature: 0°C to 40°C (operating)
-20 to +70°C (storage)
Humidity: 10% to 90%, non-condensing
Product Certifications
Certifications: CB, CE, UL, FCC, ISED, VCCI, CCC, KC, BSMI, RCM, NOM, Anatel, CCC, BSMI, TEC, SDP
