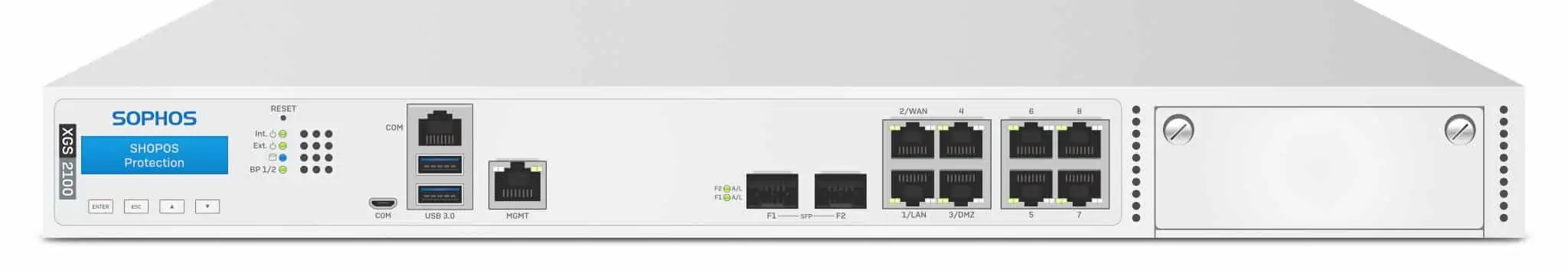

Sophos XGS 2100
All XGS Series firewall appliances are built on a dual-processor architecture,
combining a high-performance, multi-core CPU with a dedicated Xstream Flow
Processor for targeted acceleration at the hardware level. This gives you the
f
lexibility and adaptability of an x86-based firewall plus a significant performance
boost over legacy firewall designs
Performance | XGS 2100
Firewall throughput: 30,000 Mbps
Firewall IMIX: 16,500 Mbps
Firewall Latency (64 byte UDP): 6 µs
IPS throughput: 6,000 Mbps
Threat Protection throughput: 1,250 Mbps
NGFW: 5,200 Mbps
Concurrent connections: 6,500,000
New connections/sec: 134,700
IPsec VPN throughput: 17,000 Mbps
IPsec VPN concurrent tunnels: 5,000
SSL VPN concurrent tunnels: 2,500
Xstream SSL/TLS Inspection: 1,100 Mbps
Xstream SSL/TLS Concurrent connections: 18,432
Physical interfaces
Storage: Integrated min. 120 GB SATA-III SSD
Ethernet interfaces (fixed): 8 x GbE copper
2 x SFP fiber*
Bypass port pairs: 1
Management ports: 1 x RJ45 MGMT
1 x COM RJ45
1 x Micro-USB (cable incl.)
Other I/O ports: 2 x USB 3.0 (front)
1 x USB 2.0 (rear)
Number of expansion slots: 1
Flexi Port modules (optional): 8 port GbE copper
8 port GbE SFP fiber
4 port 10GE SFP+ fiber
4 port GbE copper bypass (2 pairs)
4 port GbE copper PoE +
4 port GbE copper
4 port 2.5 GbE copper PoE
2 port GbE Fiber (LC) bypass
+ 4 port GbE SFP Fiber
Max. total port density (incl. use of modules): 18
Max. Power-over-Ethernet (using Flexi Port module): 1 module: 4 ports, 60W max.
Optional add-on connectivity: SFP DSL module (VDSL2) SFP/SFP+ Transceivers
Display: Multi-function LCD module
Physical specifications
Mounting: 1U rackmount
(2 rackmount ears included)
Dimensions
Width x Depth x Height: 438 x 44 x 405 mm
Weight: 4.7 kg/10.36 lbs (unpacked)
7 kg/15.43 lbs (packed)
Environment
Power supply: Internal auto-ranging AC-DC
100-240VAC, 3-6A@50-60 Hz
External Redundant PSU Option
Power consumption: 2100: 43 W/146.86 BTU/hr (idle)
2300: 45 W/153.7 BTU/hr (idle)
2100: 162 W/533.5 BTU/hr (max.)
2300: 167 W/570.74 BTU/hr (max.)
PoE addition enabled: 76 W/260 BTU/hr (max.)
Operating temperature: 0°C to 40°C (operating)
-20°C to +70°C (storage)
Humidity: 10% to 90%, non-condensing
Product Certifications
Certifications: CB, CE, UL, FCC, ISED, VCCI, CCC, KC, BSMI, RCM, NOM, Anatel, CCC, BSMI, TEC, SDPPI
