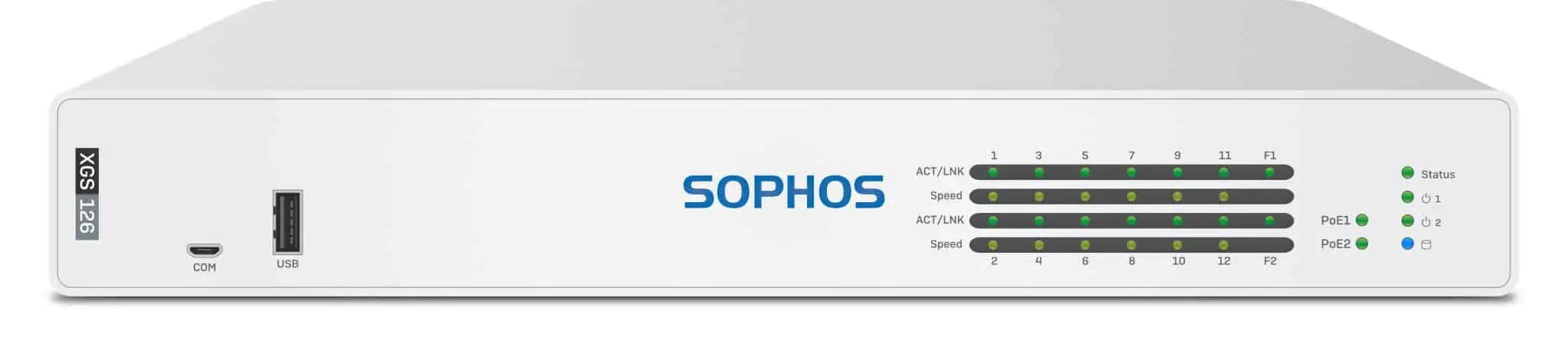

XGS 126 Wireless Firewall
Sophos XGS Series Desktop: SMB and Branch Office
Customers looking for an all-in-one network security solution will appreciate the seamless connectivity options available for our Desktop appliances. With the modularity that smaller businesses, retail outlets, and branch offices need, to grow and adapt to changing circumstances, they offer the perfect balance between price and performance. All Desktop models are optionally available with built-in Wi-Fi.
Performance | XGS 126(w)
Firewall throughput: 10,500 Mbps
Firewall IMIX: 5,250 Mbps
Firewall Latency (64 byte UDP): 8 μs
IPS throughput: 3,250 Mbps
Threat Protection throughput: 900 Mbps
NGFW: 2,500 Mbps
Concurrent connections: 5,000,000
New connections/sec: 69,900
IPsec VPN throughput: 5,500 Mbp
SSL VPN concurrent tunnels: 1,500
Xstream SSL/TLS Inspection: 800 Mbps
Xstream SSL/TLS Concurrent connections: 12,288
Wireless Specification (XGS 126w only)
No. of antennas: 3 external
MIMO capabilities: 3 x 3:3
Wireless interface: Wi-Fi 5/802.11a/b/g/n/ac
(2.4 GHz / 5 GHz)
Optional second Wi-Fi module: Wi-Fi 5/802.11a/b/g/n/ac
Physical interfaces
Storage: Integrated 64 GB SSD
Ethernet interfaces (fixed): 12 x GbE copper
2 x SFP fiber*
Power-over-Ethernet (fixed): 2 x GbE
(30W max. per port)
Management ports: 1 x COM RJ45
1 x Micro-USB (cable incl.)
Other I/O ports: 1 x USB 2.0 (front)
1 x USB 3.0 (rear)
Number of expansion slots: 1
Optional add-on connectivity: SFP DSL module (VDSL2)
3G/4G module
Second Wi-Fi radio
(XGS 126w/136w only)
SFP transceivers
Physical specifications
Mounting: Rackmount kit available
(to be ordered separately)
Dimensions
Width x Depth x Height: 320 x 44 x 213 mm
Weight: 2.4 kg/5.29 lbs (unpacked)
4.4 kg/9.70 lbs (packed)
(w-model minimally higher)
Environment
Power supply: External auto-ranging AC-DC
100-240VAC, 2.5A@50-60 Hz
12VDC, 12.5A, 150W
Optional second redundant power supply
Power consumption: 126/136: 30 W/102 BTU/hr (idle)
126w/136w: 32 W/109 BTU/hr (idle)
126: 59 W/202 BTU/hr (max.)
126w/136: 62 W/212 BTU/hr (max.)
136w: 65 W/222 BTU/hr (max.)
PoE addition enabled: 76 W/260 BTU/hr (max.)
Operating temperature: 0°C to 40°C (operating)
-20°C to +70°C (storage)
Humidity: 10% to 90%, non-condensing
Product Certifications
Certifications: CB, CE, UKCA, UL, FCC, ISED, VCCI, CCC,
KC*, BSMI, RCM, NOM, Anatel*, TEC, SDPPI
