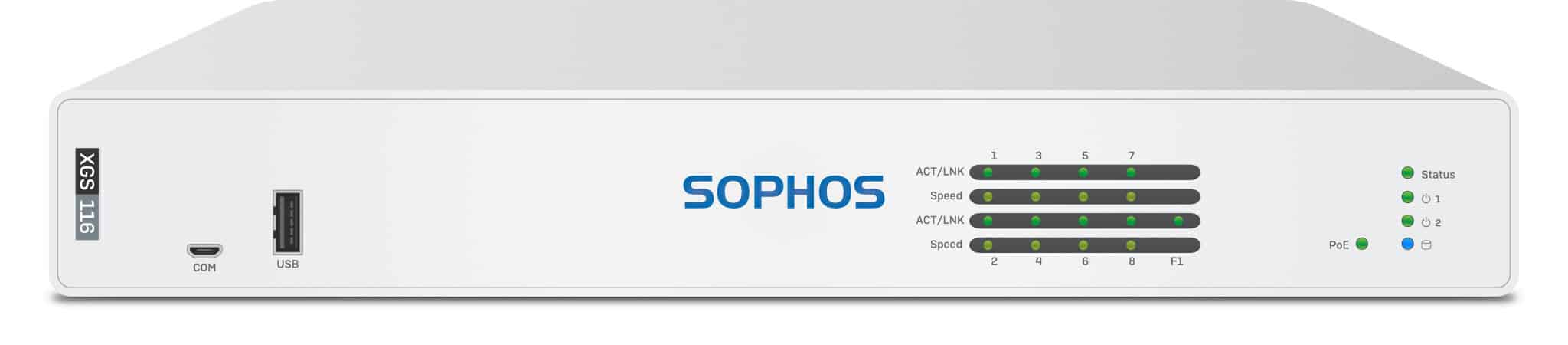

XGS 116 Wireless Firewall
Sophos XGS Series Desktop: SMB and Branch Office
Customers looking for an all-in-one network security solution will appreciate the seamless connectivity options available for our Desktop appliances. With the modularity that smaller businesses, retail outlets, and branch offices need, to grow and adapt to changing circumstances, they offer the perfect balance between price and performance. All Desktop models are optionally available with built-in Wi-Fi.
Performance | XGS 116(w)
Firewall throughput: 7,700 Mbps
Firewall IMIX: 4,500 Mbps
Firewall Latency (64 byte UDP): 8 μs
IPS throughput: 2,500 Mbps
Threat Protection throughput: 720 Mbps
NGFW: 2,000 Mbps
Concurrent connections: 1,600,000
New connections/sec: 61,500
IPsec VPN throughput: 4,800 Mbps
SSL VPN concurrent tunnels: 1,250
Xstream SSL/TLS Inspection: 650 Mbps
Xstream SSL/TLS Concurrent connections: 8,192
Wireless Specification (XGS 116w only)
No. of antennas: 2 external
MIMO capabilities: 2 x 2:2
Wireless interface: Wi-Fi 5/802.11a/b/g/n/ac
(2.4 GHz / 5 GHz)
Optional second Wi-Fi module: Wi-Fi 5/802.11a/b/g/n/ac
Physical interfaces
Storage: Integrated 64 GB SSD
Ethernet interfaces (fixed): 8 GbE copper
1 GbE SFP*
Power-over-Ethernet (fixed): 1 x GbE
803.2at (30W max.)
Management ports: 1 x COM RJ45
1 x Micro-USB (cable incl.)
Other I/O ports: 1 x USB 2.0 (front)
1 x USB 3.0 (rear)
Number of expansion slots: 1
Optional add-on connectivity: SFP DSL module (VDSL2)
3G/4G module
Second Wi-Fi radio (XGS 116w only)
SFP transceivers
Physical specifications
Mounting: Rackmount kit available
(to be ordered separately)
Dimensions
Width x Depth x Height: 320 x 44 x 213 mm
Weight: 2.2 kg/4.85 lbs (unpacked)
4.2 kg/9.26 lbs (packed)
(w-model minimally higher)
Environment
Power supply: External auto-ranging AC-DC
100-240VAC, 2.5A@50-60 Hz
12VDC, 12.5A, 150W
Optional second redundant power supply
Power consumption:116: 28 W/96 BTU/hr (idle)
116w: 30 W/102 BTU/hr (idle)
116: 57 W/195 BTU/hr (max.)
116w: 60 W/205 BTU/hr (max.)
PoE addition enabled: 38 W/130 BTU/hr (max.)
Operating temperature: 0°C to 40°C (operating)
-20°C to +70°C (storage)
Humidity: 10% to 90%, non-condensing
Product Certifications
Certifications: CB, CE, UL, FCC, ISED, VCCI, CCC, KC, BSMI, NOM, Anatel*, TEC
