Description

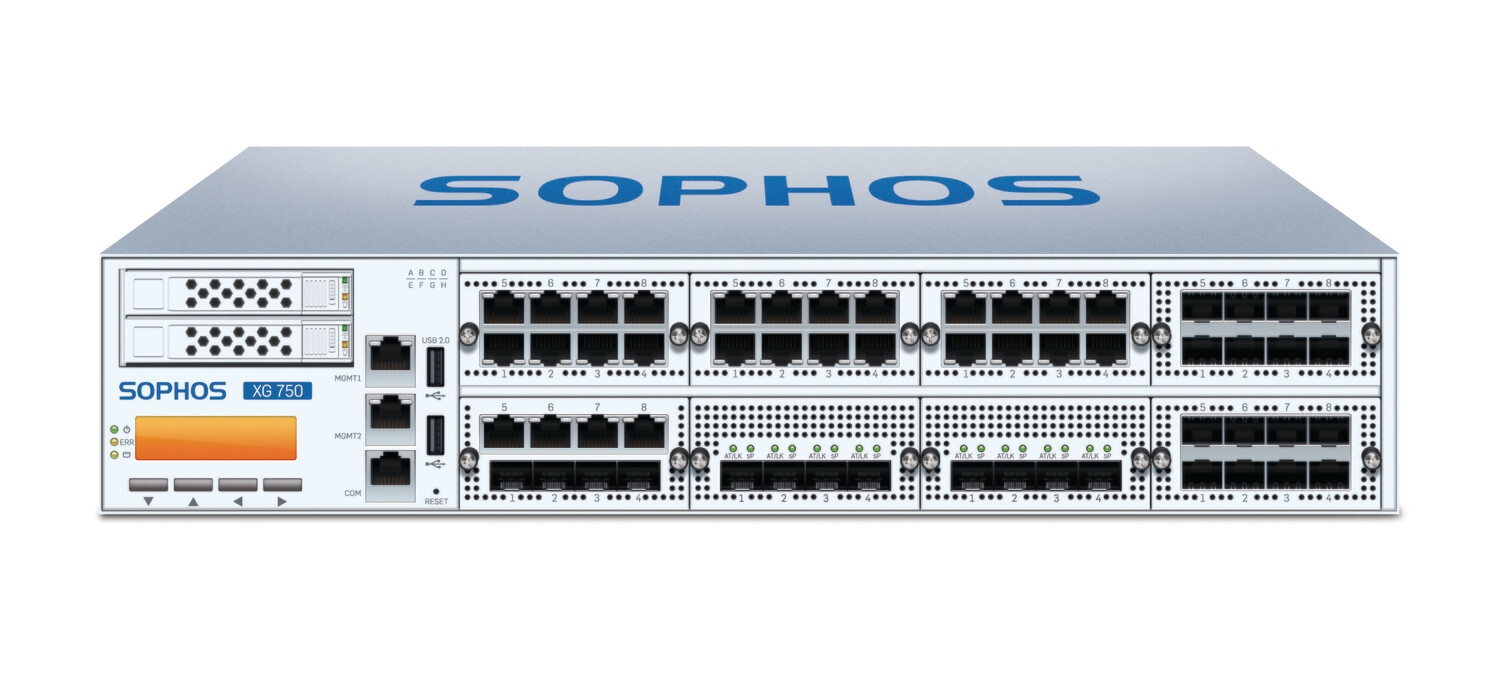

Performance | XG 750 Rev. 2
Firewall throughput: 100,000 Mbps
Firewall IMIX: 38,000 Mbps
IPS throughput: 23,000 Mbps
NGFW throughput: 19,200 Mbps
Threat Protection throughput: 9,400 Mbps
Concurrent connections: 30,000,000
New connections/sec: 223,500
IPsec VPN throughput: 12,500 Mbps
Xstream SSL decryption + Threat Protection: 1,400 Mbps
Xstream SSL Concurrent connections: 512,000
Physical interfaces
Storage (local quarantine/logs): 2 x integrated hot-swap SSD (RAID)
Ethernet interfaces (removable): 8 GbE copper
No. of Flexi Port slots: 8
Flexi Port modules (optional): 8 port GbE copper
8 port GbE SFP*
2 port 10 GbE SFP+*
2 port 40 GbE QSFP+*
4 port 10 GbE SFP+*
4 port SFP* plus 4 port GbE copper LAN bypass
Connectivity modules (optional): SFP DSL module (VDSL2)
SFP/SFP+ Transceivers
I/O ports: 2 x USB 2.0 (front)
1 x USB 3.0 (rear)
2 x Mgmt Port (eth0/eth1, front)
1 x COM (RJ45) (front)
1 x VGA (rear)
Display: Multi-function LCD module
Power supply: 2 x hot-swap external auto ranging 100-240VAC, 50-60 Hz
Physical specifications
Mounting: 2U sliding rails (included)
Dimensions
Width x Depth x Height: 438 x 600 x 88 mm
17.24 x 23.62 x 3.46 inches
Weight: 17.8 kg / 39.24 lbs (unpacked)
27 kg / 59.53 lbs (packed)
Environment
Power consumption: 326.5W, 1114.01BTU/hr (idle)
512.2W, 1747.62BTU/hr (full load)
Operating temperature: 0-40°C (operating)
-40 to +70°C (storage)
Humidity: 5%-90%, non-condensing
Product Certifications
Certifications: CB, UL, CE, FCC Class A, ISED, VCCI, RCM, CCC, KC, BIS
