Description

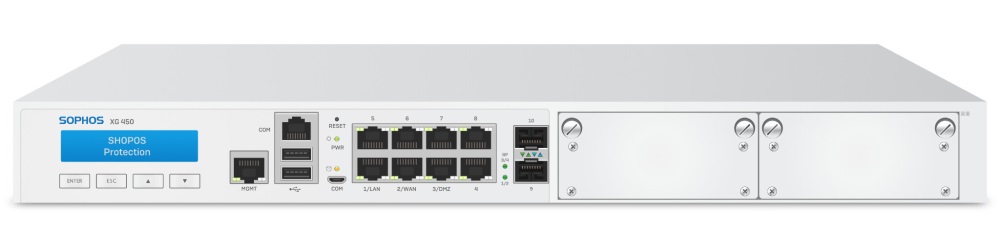

Performance¹ | XG 450 Rev. 2
Firewall throughput: 65,000 Mbps
Firewall IMIX: 34,000 Mbps
IPS throughput: 14,700 Mbps
NGFW throughput: 13,900 Mbps
Threat Protection throughput: 3,400 Mbps
Concurrent connections: 13,640,000
New connections/sec: 187,000
IPsec VPN throughput: 6,100 Mbps
Xstream SSL decryption + Threat Protection: 770 Mbps
Xstream SSL Concurrent connections: 102,400
Physical interfaces
Storage (local quarantine/logs): 2 x integrated SSD
Ethernet interfaces (fixed): 8 GbE copper (incl. 2 bypass pairs)
2 10 GbE SFP+*
No. of Flexi Port slots: 2
Flexi Port modules (optional) :8 port GbE copper
8 port GbE SFP*
2 port 10 GbE SFP+*
4 port 10 GbE SFP+*
2 port 40 GbE QSFP+*
4 port GbE PoE
8 port GbE PoE
4 port GbE copper LAN bypass
Connectivity modules (optional): SFP DSL module (VDSL2)
SFP/SFP+ Transceivers
I/O ports: 2 x USB 3.0 (front)
1 x Micro USB (front)
1 x USB 3.0 (rear)
1 x COM (RJ45) (front)
1 x IPMI (front)
1 x HDMI (rear)
Display: Multi-function LCD module
Power supply: Internal auto-ranging 100-240VAC, 50-60 Hz
Hot Swap Redundant PSU optional (internal)
Physical specifications
Mounting: 1U rackmount (sliding rails incl.)
Width x Depth x Height: 438 x 507.7 x 44 mm
17.24 x 19.99 x 1.75 inches
Weight: 7.8 kg / 17.2 lbs (unpacked)
14.8 kg / 32.63 lbs (packed)
Environment
Power consumption: XG 430: 28W, 96 BTU/hr (idle)
79W, 270 BTU/hr (full load)
XG 450: 31W, 107 BTU/hr (idle)
83W, 283 BTU/hr (full load)
Operating temperature: 0-40°C (operating)
-20 to + 80°C (storage)
Humidity: 10%-90%, non-condensing
Product Certifications
Certifications: CB, UL, CE, FCC Class A, ISED, VCCI, RCM, CCC, KC, BIS
