Description

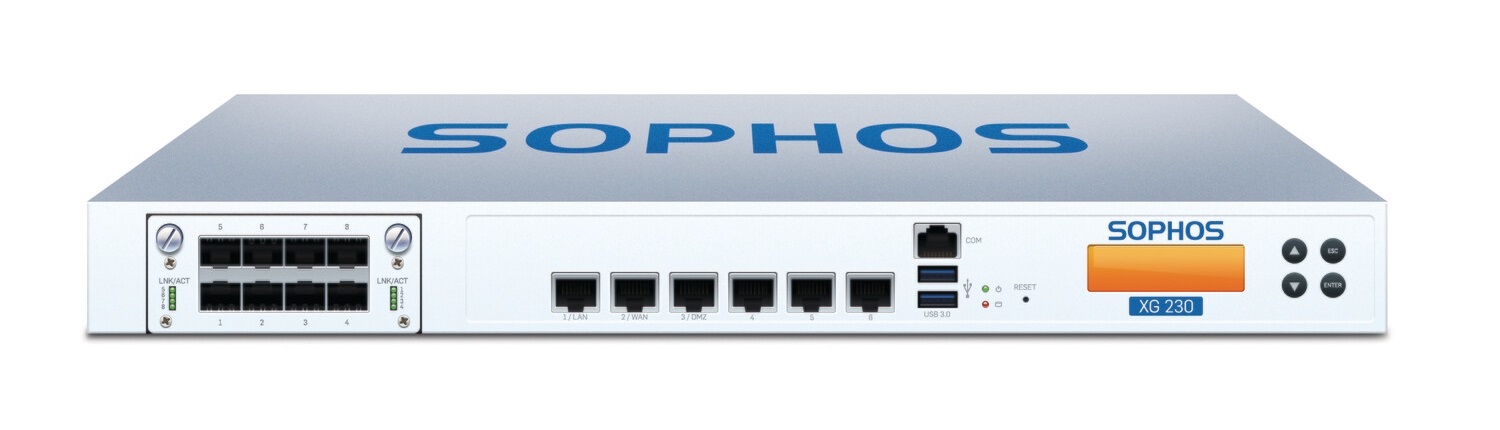

Performance¹ | XG 230 Rev. 2
Firewall throughput: 32,000 Mbps
Firewall IMIX: 14,800 Mbps
IPS throughput: 4,900 Mbps
NGFW throughput: 4,500 Mbps
Threat Protection throughput: 1,000 Mbps
Concurrent connections: 6,570,000
New connections/sec: 108,900
IPsec VPN throughput: 2,100 Mbps
Xstream SSL decryption + Threat Protection: 280 Mbps
Xstream SSL Concurrent connections: 18,432
Physical interfaces
Storage (local quarantine/logs): integrated SSD
Ethernet interfaces (fixed): 6 GbE copper (incl. 2 bypass pairs)
2 GbE SFP*
No. of Flexi Port slots: 1
Flexi Port modules (optional)
8 port GbE copper
8 port GbE SFP*
2 port 10 GbE SFP+*
4 port 10 GbE SFP+*
2 port 40 GbE QSFP+*
4 port GbE PoE
8 port GbE PoE
4 port GE copper LAN bypass
Connectivity modules (optional): SFP DSL module (VDSL2)
SFP/SFP+ Transceivers
I/O ports: 2 x USB 3.0 (front)
1 x Micro USB (front)
1 x USB 3.0 (rear)
1 x COM (RJ45) (front)
1 x HDMI (rear)
Display: Multi-function LCD module
Power supply: Internal auto-ranging
100-240VAC, 50-60 Hz
Redundant PSU optional (external)
Physical specifications
Mounting: 1U rack mount
(2 rackmount ears included)
Width x Depth x Height: 438 x 344.4 x 44 mm
17.24 x 13.56 x 1.75 inches
Weight: 5.2 kg / 11.46lb (unpacked)
7.7 kg / 16.98 lbs (packed)
Environment
Power consumption: XG 210: 19W, 65 BTU/hr (idle)
35W, 119 BTU/hr (full load)
XG 230: 21W, 72 BTU/hr (idle)
41W, 141 BTU/hr (full load)
Operating temperature: 0-40°C (operating)
-20 to +80°C (storage)
Humidity: 10%-90%, non-condensing
Product Certifications
Certifications: CB, UL, CE, FCC Class A, ISED, VCCI, RCM, CCC, KC, BIS
