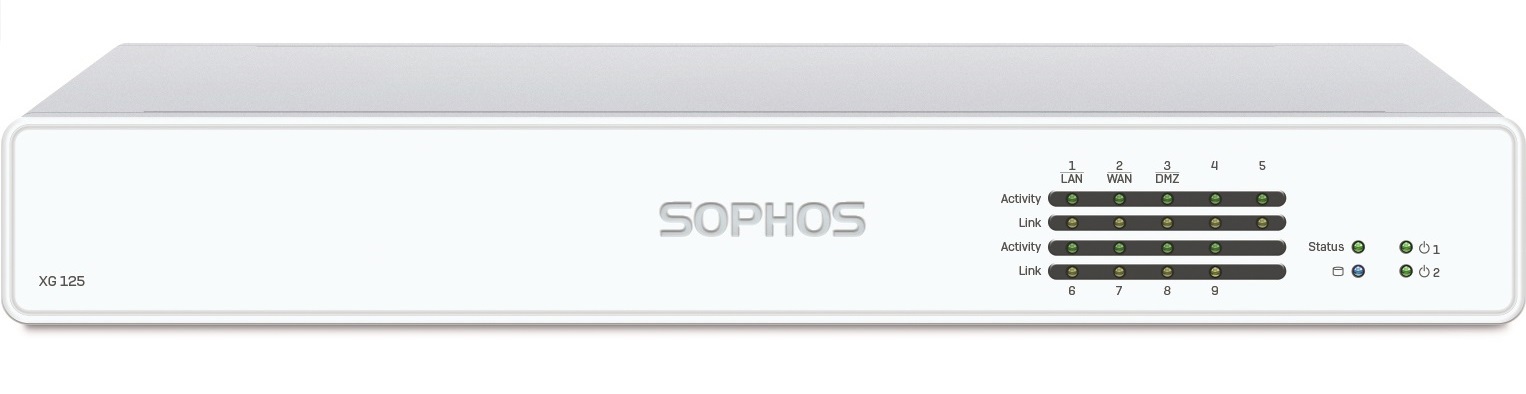

XG 125 Wireless Firewall

XG 125, XG 125w, XG 135, XG 135w

These powerful firewall appliances offer 1U performance with a desktop form factor and price. If you have a small business or branch offices to protect and are working on a tight budget, these models are the ideal choice. These models come equipped with 8 GbE copper ports built-in, plus 1 SFP port, e.g. for use with our optional DSL modem or an SFP Fiber transceiver to connect the device to a server or switch. An expansion bay provides the option to add additional connectivity such as our 3G/4G module. A 2nd Wi-Fi radio module is also available for the XG 135w. An optional second power supply ensures business continuity for these models.

– Optionally available with integrated 802.11ac WLAN
– 8 GbE copper ports built-in, plus 1 SFP port
– Expansion bay for optional 3G/4G module
– 2nd Wi-Fi radio module option for XG 135w
– Optional second power supply

Description

Performance¹ | XG 125(w) Rev. 3

Firewall throughput: 7,000 Mbps
Firewall IMIX: 3,500 Mbps
IPS throughput: 1,530 Mbps
NGFW throughput: 1,275 Mbps
Threat Protection throughput: 400 Mbps
Concurrent connections: 1,570,000
New connections/sec: 29,300
IPsec VPN throughput: 1,500 Mbps
Xstream SSL decryption + Threat Protection: 170 Mbps
Xstream SSL Concurrent connections: 8,192



Wireless Specification (XG 125w and XG 135w only)

No. of antennas: 3 external
MIMO capabilities: 3 x 3:3
Wireless interface: 802.11a/b/g/n/ac (2.4 GHz / 5 GHz)



Physical interfaces

Storage (local quarantine/logs): integrated SSD
Ethernet interfaces (fixed): 8 GbE copper
1 GbE SFP*
Connectivity modules (optional): SFP DSL module (VDSL2)
3G/4G module
802.11ac Wi-Fi radio 2×2:2 (XG 135w only)
SFP transceivers
I/O ports (rear): 2 x USB 2.0
1 x Micro-USB
1 x COM (RJ45)
1 x HDMI
Power supply: External auto ranging DC: 12V,
100-240VAC, 36W@50-60 Hz
Redundant PSU optional (external)



Physical specifications

Mounting: Rackmount kit available
(to be ordered separately)
Dimensions
Width x Depth x Height: 320 x 212 x 44 mm
12.60 x 8.35 x 1.73 inches
Weight: 1.9 kg / 4.19 lbs (unpacked)
3.3 kg / 7.27 lbs (packed)
(w models minimally higher)



Environment

Power consumption: 18.6W, 63.426 BTU/hr (idle)
20.04W, 68.336 BTU/hr (full load)
Operating temperature: 0-40°C (operating)
-20 to +80°C (storage)
Humidity: 10%-90%, non-condensing



Product Certifications

Certifications: CB, UL, CE, FCC, ISED, VCCI, MIC (Japan),
RCM, CCC, KC, BIS
