Price range: $3,559.00 through $16,631.50 - Suggested MSRP

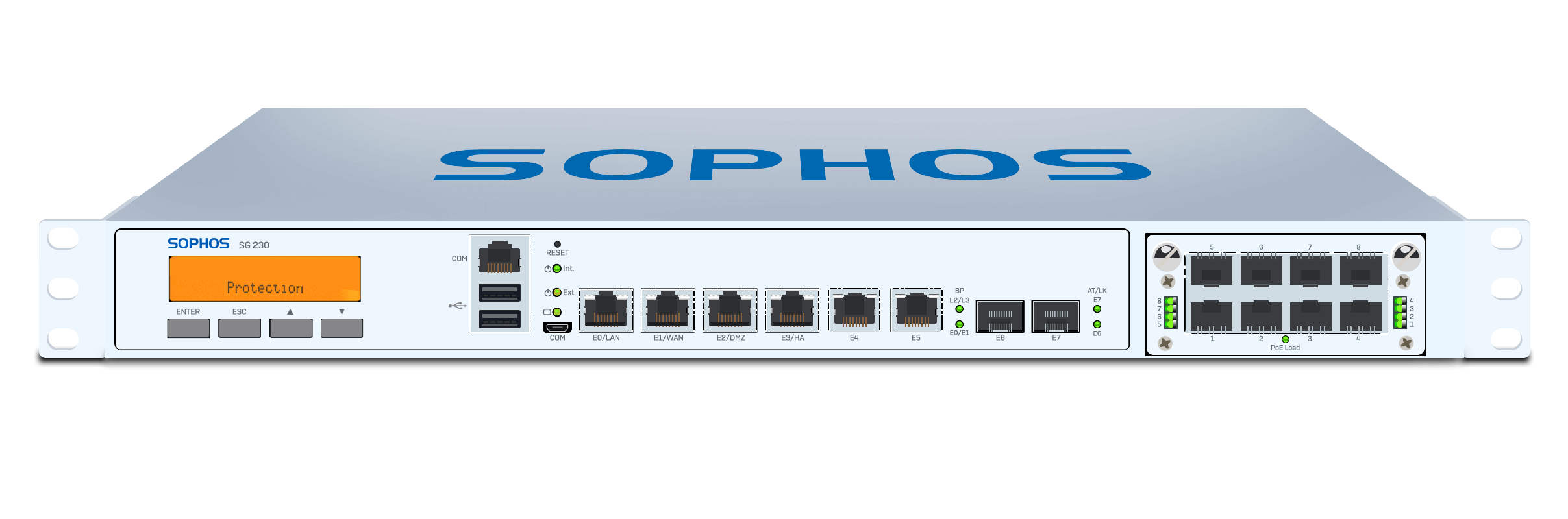

SG 230
The Sophos SG 210 and SG 230 are designed to protect small to mid-sized businesses and branch offices. Based on the latest Intel technology and equipped with 6 GbE copper ports, 2 GbE SFP ports plus one FleXi Port slot to configure with an optional module, they provide high flexibility and throughput at an excellent price-to-performance ratio. As with all SG models, you can dynamically cluster up to 10 of these appliances.
Performance| SG 230 Rev. 2
Firewall throughput: 14.5 Gbps
VPN throughput: 2 Gbps
IPS throughput: 3 Gbps
Antivirus throughput (proxy): 800 Mbps
Concurrent connections: 4,000,000
New connections/sec: 70,000
Maximum licensed users: unrestricted
Physical interfaces
Storage (local quarantine/logs): integrated SSD
Ethernet interfaces (fixed): 6 GbE copper (incl. 2 bypass pairs)
2 GbE SFP*
No. of FleXi Port slots: 1
FleXi Port modules (optional): 8 port GbE copper
8 port GbE SFP*
2 port 10 GbE SFP+*
4 port 10 GbE SFP+*
2 port 40 GbE QSFP+*
4 port GbE PoE
8 port GbE PoE
I/O ports (rear): 2 x USB 3.0 (front)
1 x Micro USB (front)
1 x USB 3.0 (rear)
1 x COM (RJ45) (front)
1 x HDMI (rear)
Display: Multi-function LCD module
Power supply: Internal auto-ranging
90-264VAC, 50-60 Hz
Redundant PSU optional (external)
Physical specifications
Mounting: 1U rack mount
(2 rackmount ears included)
Dimensions
Width x Depth x Height: 438 x 344.4 x 44mm
17.24 x 13.56 x 1.75 inches
Weight: 5.2 kg / 11.46 lbs (unpacked)
7.2 kg / 15.87 lbs (packed)
Environment
Power consumption: SG 210: 19W, 65 BTU/hr (idle)
35W, 119 BTU/hr (full load)
SG 230: 21W, 72 BTU/hr (idle)
41W, 141 BTU/hr (full load)
Operating temperature: 0-40°C (operating)
-20 to +80°C (storage)
Humidity: 10%-90%, non-condensing
Product Certifications
Certifications: CB, UL, CE,FCC Class A,
ISED, VCCI, RCM, CCC, KC, BIS
