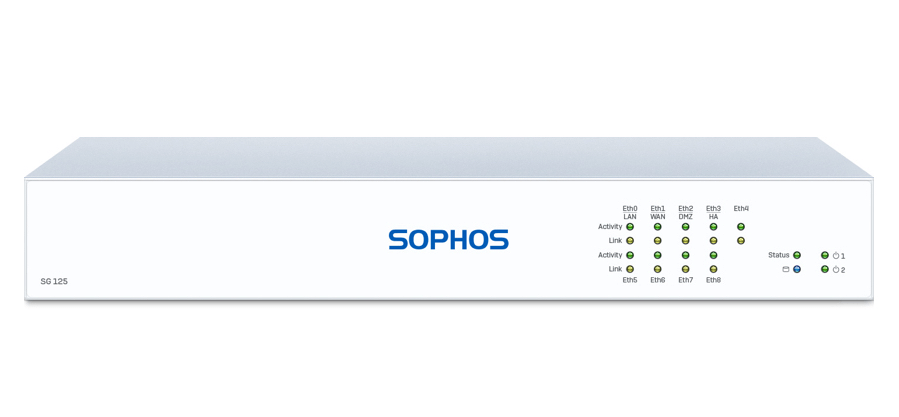

SG 125 Wireless SG Desktop Models

Price range: $679.00 through $3,910.50  - Suggested MSRP

SG 125w

These powerful firewall appliances offer 1U performance with a desktop form factor and price. If you have a small business or branch offices to protect and are working on a tight budget, these models are the ideal choice. They are also available with integrated 802.11ac wireless LAN for optimal coverage and connectivity for your mobile workers. Built upon the latest Intel architecture, our software makes optimal use of the multi-core technology to provide excellent throughput for all your key processes. These models come equipped with 8 GbE copper ports built-in, plus 1 SFP port, e.g. for use with our optional DSL modem or fiber connectivity using an SFP transceiver. An expansion bay provides the option to add additional connectivity such as our 3G/4G module. A 2nd Wi-Fi radio module is also available for the SG 135w. An optional second power supply ensures business continuity for these models. As with all our SG firewalls, up to 10 appliances can be dynamically clustered for greater scalability (must be the same model and revision number for HA).

SKU: N/A Categories: , ,

Description

Performance| SG 125(w) Rev. 3

Firewall throughput: 3,100 Mbps
VPN throughput: 500 Mbps
IPS throughput: 750 Mbps
Antivirus throughput (proxy): 650 Mbps
Concurrent connections: 2,002,930
New connections/sec: 25,000
Maximum licensed users: unrestricted



Wireless Specification (SG 125w only)

No. of antennas: 3 external
MIMO capabilities: 3 x 3:3
Wireless interface: 802.11a/b/g/n/ac (2.4 GHz / 5 GHz)



Physical interfaces

Storage (local quarantine/logs): integrated SSD
Ethernet interfaces (fixed): 8 GbE copper
1 GbE SFP*
I/O ports (rear): 2 x USB 2.0
1 x Micro-USB
1 x COM (RJ45)
1 x HDMI
No. of expansion slots: 1
Connectivity Modules (optional): SFP DSL module (VDSL2)
3G/4G module
802.11ac Wi-Fi radio 2×2:2 (SG 135w only)
SFP transceivers
Power supply: External auto ranging DC: 12V,
100-240VAC, 36W@50-60 Hz
Redundant PSU optional (external)



Physical specifications

Mounting: Rackmount kit available
(to be ordered separately)
Dimensions
Width x Depth x Height: 305 x 205 x 44 mm
12 x 8.07 x 1.73 inches
Weight: 1.8 kg / 3.97 lbs (unpacked)
2.7 kg / 5.95 lbs (packed)



Environment

Power consumption: 18.6W, 63.426 BTU/hr (idle)
20.04W, 68.336 BTU/hr (full load)
Operating temperature: 0-40°C (operating)
-20 to +80°C (storage)
Humidity: 10%-90%, non-condensing



Product Certifications

Certifications: CB, UL, CE, FCC, ISED, VCCI, MIC (Japan), RCM, CCC, KC, BIS
